FalkorDB Snowflake Integration Guide

Overview

FalkorDB is available as a Snowflake Native App, allowing you to run graph database operations directly within your Snowflake environment. This integration enables you to:

• Load data from Snowflake tables into graph structures
• Query relationships using Cypher query language
• Analyze connected data without moving it outside Snowflake
• Leverage graph algorithms on your existing data warehouse

Installation

From Snowflake Marketplace

1. Navigate to Snowflake Marketplace
2. Search for “FalkorDB”
3. Click Get to install the app
4. Select your target database and warehouse
5. Click Get to complete installation

Initial Setup

After installation, start the FalkorDB service:

-- Start the service (creates compute pool and warehouse)
-- Replace <app_instance_name> with your installed app name
CALL <app_instance_name>.app_public.start_app('FALKORDB_POOL', 'FALKORDB_WH');

-- Check service status
CALL <app_instance_name>.app_public.get_service_status();

Note: Replace <app_instance_name> with the name you chose during installation.

Wait for the service status to show READY before proceeding (typically 2-3 minutes).

Basic Usage

Creating a Graph from Direct Queries

The simplest way to create a graph is using direct Cypher queries:

-- Create nodes
CALL <app_instance_name>.app_public.graph_query('my_graph',
  'CREATE (:Person {name: ''Alice'', age: 30}),
          (:Person {name: ''Bob'', age: 25})'
);

-- Create relationships
CALL <app_instance_name>.app_public.graph_query('my_graph',
  'MATCH (a:Person {name: ''Alice''}), (b:Person {name: ''Bob''})
   CREATE (a)-[:KNOWS {since: 2020}]->(b)'
);

-- Query the graph
CALL <app_instance_name>.app_public.graph_query('my_graph',
  'MATCH (p:Person) RETURN p.name, p.age'
);

Loading Data from Snowflake Tables

To load data from your existing Snowflake tables, you need to bind a table reference:

Step 1: Bind Your Table

1. In Snowflake UI, go to Data Products → Apps
2. Find and click on FalkorDB

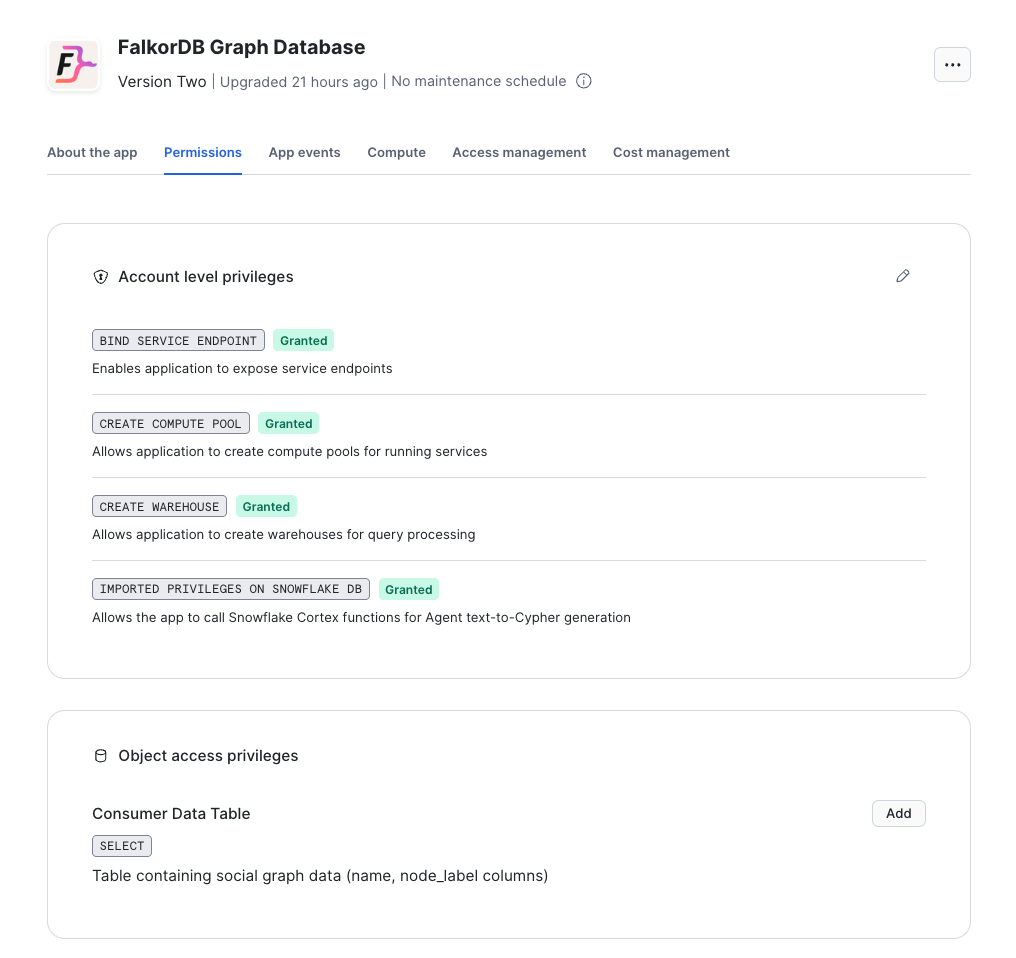

3. Go to Security → References
4. Click + Add next to “Consumer Data Table”
5. Select your database, schema, and table
6. Click Save

Important: Your table must have a header row or column names. CSV headers will be converted to UPPERCASE by Snowflake.

Step 2: Load Data Using CSV

-- Example: Load customer data
-- Assumes your bound table has columns: ID, NAME, EMAIL, CITY
CALL <app_instance_name>.app_public.load_csv(
  'customer_graph',
  'LOAD CSV FROM ''file://consumer_data.csv'' AS row
   CREATE (:Customer {
     id: row[0],
     name: row[1],
     email: row[2],
     city: row[3]
   })'
);

Note:

• The table is automatically retrieved from your Config UI binding—no need to specify it as a parameter
• The Cypher query must include LOAD CSV FROM 'file://consumer_data.csv' AS row to access the CSV data
• Access columns using row[0], row[1], row[2], etc. (0-indexed)

Querying Graphs

Use graph_query() to run Cypher queries:

-- Find all customers
CALL <app_instance_name>.app_public.graph_query('customer_graph',
  'MATCH (c:Customer) RETURN c.name, c.email LIMIT 10'
);

-- Find relationships
CALL <app_instance_name>.app_public.graph_query('social_graph',
  'MATCH (a:Person)-[r:KNOWS]->(b:Person)
   RETURN a.name, r.since, b.name'
);

-- Pathfinding
CALL <app_instance_name>.app_public.graph_query('social_graph',
  'MATCH path = (a:Person {name: ''Alice''})-[:KNOWS*1..3]-(b:Person {name: ''Eve''})
   RETURN path'
);

Managing Graphs

-- List all graphs
CALL <app_instance_name>.app_public.graph_list();

-- Delete a graph
CALL <app_instance_name>.app_public.graph_delete('my_graph');

Complete Example: Social Network

Step 1: Create Sample Data Table

-- Create a table with social network data
CREATE OR REPLACE TABLE social_data (
  person_id INT,
  name VARCHAR,
  age INT,
  city VARCHAR,
  knows_id INT,
  knows_since INT
);

-- Insert sample data
INSERT INTO social_data VALUES
  (1, 'Alice', 30, 'New York', 2, 2020),
  (2, 'Bob', 25, 'San Francisco', 3, 2019),
  (3, 'Carol', 35, 'Seattle', 5, 2018),
  (4, 'David', 28, 'Boston', 5, 2022),
  (5, 'Eve', 32, 'Chicago', NULL, NULL);

Step 2: Bind the Table

Follow the UI steps above to bind social_data table to FalkorDB.

Step 3: Load Nodes

-- Load person nodes
CALL <app_instance_name>.app_public.load_csv(
  'social_network',
  'LOAD CSV FROM ''file://consumer_data.csv'' AS row
   CREATE (:Person {
     id: toInteger(row[0]),
     name: row[1],
     age: toInteger(row[2]),
     city: row[3]
   })'
);

Note: Columns are accessed by index: row[0] = person_id, row[1] = name, row[2] = age, row[3] = city

Step 4: Load Relationships

For relationships, you’ll need to bind a table that represents edges:

-- Create relationships table
CREATE OR REPLACE TABLE social_relationships AS
SELECT person_id, knows_id, knows_since
FROM social_data
WHERE knows_id IS NOT NULL;

Bind social_relationships and load:

CALL <app_instance_name>.app_public.load_csv(
  'social_network',
  'LOAD CSV FROM ''file://consumer_data.csv'' AS row
   MATCH (a:Person {id: toInteger(row[0])})
   MATCH (b:Person {id: toInteger(row[1])})
   CREATE (a)-[:KNOWS {since: toInteger(row[2])}]->(b)'
);

Note: For relationships table: row[0] = person_id, row[1] = knows_id, row[2] = knows_since

Step 5: Query the Graph

-- Find all friends of Alice
CALL <app_instance_name>.app_public.graph_query('social_network',
  'MATCH (a:Person {name: ''Alice''})-[:KNOWS]->(friend)
   RETURN friend.name, friend.city'
);

-- Find friend-of-friend connections
CALL <app_instance_name>.app_public.graph_query('social_network',
  'MATCH (a:Person {name: ''Alice''})-[:KNOWS*2]-(fof)
   WHERE fof.name <> ''Alice''
   RETURN DISTINCT fof.name, fof.city'
);

-- Find shortest path between two people
CALL <app_instance_name>.app_public.graph_query('social_network',
  'MATCH path = shortestPath(
     (a:Person {name: ''Alice''})-[:KNOWS*]-(b:Person {name: ''Eve''})
   )
   RETURN path'
);

Quick Start with Sample Data

FalkorDB includes a sample data loader for testing:

-- 1. Make sure the service is running
CALL <app_instance_name>.app_public.get_service_status();

-- 2. Load built-in sample social network (5 people with relationships)
CALL <app_instance_name>.app_public.load_sample_social_network();

-- 3. Query the sample data
CALL <app_instance_name>.app_public.graph_query('demo_social_network',
  'MATCH (p:Person) RETURN p.name, p.age, p.city'
);

-- 4. Find relationships in the sample network
CALL <app_instance_name>.app_public.graph_query('demo_social_network',
  'MATCH (a:Person)-[r:KNOWS]->(b:Person)
   RETURN a.name, b.name, r.since'
);

Important Notes

Data Updates and Duplicates

Current Limitation: Running load_csv() multiple times will create duplicate nodes. FalkorDB currently uses CREATE statements which always insert new data.

Workaround: Delete and recreate the graph for updates:

-- Delete existing graph
CALL <app_instance_name>.app_public.graph_delete('my_graph');

-- Reload with updated data
CALL <app_instance_name>.app_public.load_csv('my_graph', '...');

Future: We’re working on MERGE/upsert support for incremental updates.

CSV Data Access

When using load_csv, access CSV columns by index using row[0], row[1], row[2], etc.:

-- Example: First column is ID, second is NAME, third is EMAIL
LOAD CSV FROM 'file://consumer_data.csv' AS row
CREATE (:Person {id: row[0], name: row[1], email: row[2]})

The CSV data comes from your bound table (configured in the app’s Permissions tab).

Cost Management

FalkorDB runs on Snowflake Compute Pools, which charge based on usage:

• ACTIVE pools charge continuously (even when idle)
• SUSPENDED pools don’t charge

Always suspend when not in use:

-- Outside the app, using ACCOUNTADMIN
USE ROLE ACCOUNTADMIN;
SHOW COMPUTE POOLS;
ALTER COMPUTE POOL falkordb_pool SUSPEND;

-- Resume when needed
ALTER COMPUTE POOL falkordb_pool RESUME;

Service Management

-- Stop the service (doesn't delete compute pool)
CALL <app_instance_name>.app_public.stop_app();

-- Restart the service
CALL <app_instance_name>.app_public.start_app('FALKORDB_POOL', 'FALKORDB_WH');

-- Check logs (if issues occur)
CALL <app_instance_name>.app_public.get_service_logs('0', 'falkordb', 100);

-- List containers
CALL <app_instance_name>.app_public.get_service_containers();

Cypher Query Language Basics

Creating Nodes

-- Simple node
CREATE (:Label {property: 'value'})

-- Multiple properties
CREATE (:Person {name: 'Alice', age: 30, city: 'NYC'})

-- Multiple nodes
CREATE (:Person {name: 'Alice'}), (:Person {name: 'Bob'})

Creating Relationships

-- Match existing nodes and create relationship
MATCH (a:Person {name: 'Alice'}), (b:Person {name: 'Bob'})
CREATE (a)-[:KNOWS {since: 2020}]->(b)

-- Bidirectional (two relationships)
MATCH (a:Person {name: 'Alice'}), (b:Person {name: 'Bob'})
CREATE (a)-[:KNOWS]->(b), (b)-[:KNOWS]->(a)

Querying

-- Match all nodes with label
MATCH (p:Person) RETURN p

-- Match with filter
MATCH (p:Person {city: 'NYC'}) RETURN p.name, p.age

-- Match relationships
MATCH (a:Person)-[r:KNOWS]->(b:Person) RETURN a.name, b.name

-- Pattern matching
MATCH (a:Person)-[:KNOWS]->(b:Person)-[:KNOWS]->(c:Person)
RETURN a.name, b.name, c.name

Advanced Queries

-- Shortest path
MATCH path = shortestPath((a:Person {name: 'Alice'})-[:KNOWS*]-(b:Person {name: 'Eve'}))
RETURN path

-- Variable length paths
MATCH (a:Person)-[:KNOWS*1..3]-(b:Person)
RETURN DISTINCT a.name, b.name

-- Aggregation
MATCH (p:Person)-[:KNOWS]->(friend)
RETURN p.name, COUNT(friend) AS friend_count
ORDER BY friend_count DESC

Troubleshooting

“Reference NOT bound” Error

Problem: load_csv() fails with reference error.

Solution: Ensure you’ve bound a table via the UI (Apps → FalkorDB → Security → References → Add).

Service Not Starting

Problem: get_service_status() shows error state.

Solution:

-- Check logs
CALL <app_instance_name>.app_public.get_service_logs('0', 'falkordb', 200);

-- Restart service
CALL <app_instance_name>.app_public.stop_app();
CALL <app_instance_name>.app_public.start_app('FALKORDB_POOL', 'FALKORDB_WH');

Duplicate Nodes After Reload

Problem: Running load_csv() twice creates duplicate nodes.

Solution: Delete graph before reloading:

CALL <app_instance_name>.app_public.graph_delete('my_graph');
CALL <app_instance_name>.app_public.load_csv('my_graph',
  'LOAD CSV FROM ''file://consumer_data.csv'' AS row CREATE (:Node {id: row[0]})');

Column Not Found in CSV

Problem: Cypher query can’t access CSV columns.

Solution: Use index-based access: row[0], row[1], row[2], etc. (not row.COLUMNNAME)

-- Correct
LOAD CSV FROM 'file://consumer_data.csv' AS row CREATE (:Person {id: row[0], name: row[1]})

-- Incorrect
CREATE (:Person {id: row.ID, name: row.NAME})

Performance Tips

1. Create indexes on frequently queried properties
2. Use specific labels in MATCH clauses to reduce search space
3. Limit result sets for exploration: RETURN ... LIMIT 100
4. Batch large loads into smaller transactions if timeouts occur

Additional Resources

• Cypher Query Language: OpenCypher Documentation
• FalkorDB GitHub: github.com/FalkorDB/FalkorDB
• Snowflake Native Apps: Snowflake Documentation

Support

For issues, questions, or feature requests:

• GitHub Issues: FalkorDB Snowflake Integration
• Community: FalkorDB Discord/Slack (check GitHub README for links)

---

Last Updated: February 2026
Version: 2.0 (Patch 17)
