Weakly Connected Components (WCC)

Overview

The Weakly Connected Components (WCC) algorithm identifies groups of nodes connected through any path, disregarding edge directions. In a weakly connected component, every node is reachable from any other node when treating all edges as undirected.

WCC serves as a common algorithm in scenarios such as:

• Community detection
• Data cleaning and preprocessing
• Large-scale network analysis
• Detecting isolated or loosely connected subgraphs

Algorithm Details

WCC initializes by assigning each node to its own component. It iteratively scans for edges linking nodes across different components and merges them, ignoring the directionality of edges throughout the process. The algorithm terminates when no further merges occur, producing a collection of disjoint connected components.

Performance

WCC operates with a time complexity of **O(	V	+	E	)**, where:
- **	V	** represents the total number of nodes
- **	E	** represents the total number of edges

This linear complexity makes WCC efficient for large graphs.

Syntax

CALL algo.wcc([config])

Parameters

The procedure accepts an optional configuration Map with the following parameters:

Name	Type	Default	Description
nodeLabels	Array	All labels	Array of node labels to filter which nodes are included in the computation
relationshipTypes	Array	All relationship types	Array of relationship types to define which edges are traversed

Return Values

The procedure returns a stream of records with the following fields:

Name	Type	Description
node	Node	The node entity included in the component
componentId	Integer	Identifier of the weakly connected component the node belongs to

Examples:

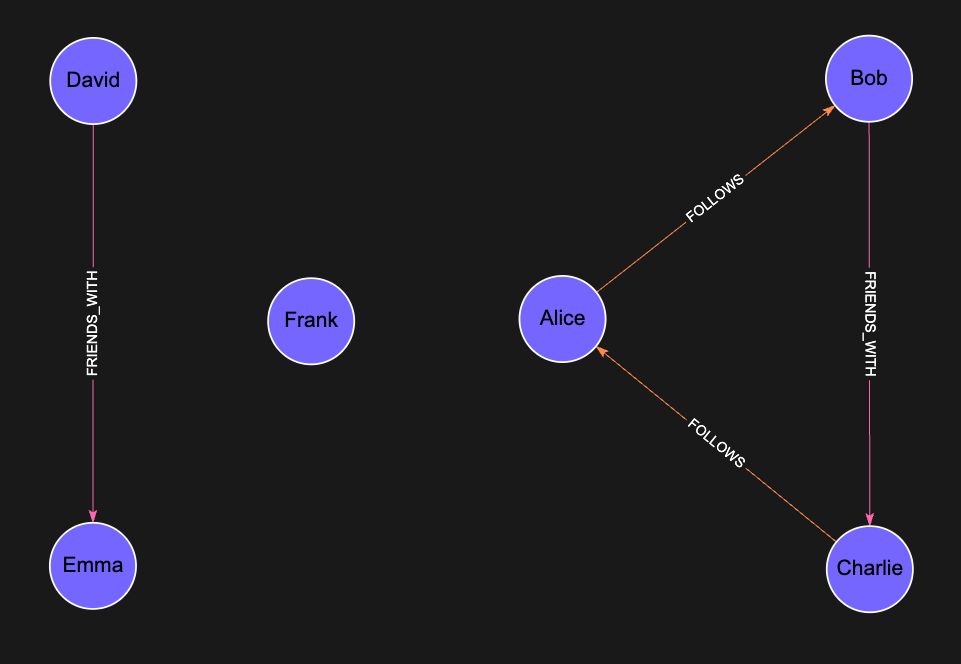

Lets take this Social Graph as an example:

There are 3 different communities in this graph:

• Alice, Bob, Charlie
• David, Emma
• Frank

Create the Graph

CREATE
  (alice:User {name: 'Alice'}),
  (bob:User {name: 'Bob'}),
  (charlie:User {name: 'Charlie'}),

  (david:User {name: 'David'}),
  (emma:User {name: 'Emma'}),

  (frank:User {name: 'Frank'}),

  (alice)-[:FOLLOWS]->(bob),
  (bob)-[:FRIENDS_WITH]->(charlie),
  (charlie)-[:FOLLOWS]->(alice),

  (david)-[:FRIENDS_WITH]->(emma)

Example: Find isolated communities in a social network

CALL algo.WCC(null) yield node, componentId

Expected Results

| node | componentId | |——————————–|————-| | (:User {name: "Alice"}) | 0 | | (:User {name: "Bob"}) | 0 | | (:User {name: "Charlie"}) | 0 | | (:User {name: "David"}) | 3 | | (:User {name: "Emma"}) | 3 | | (:User {name: "Frank"}) | 5 |

Example: Group Communities together into a single list

CALL algo.WCC(null) yield node, componentId return collect(node.name), componentId

Expected Results

| collect(node.name) | componentId | |—————————-|————-| | [David, Emma] | 3 | | [Frank] | 5 | | [Alice, Bob, Charlie] | 0 | ```
