Minimum Spanning Forest (MSF)

The Minimum Spanning Forest algorithm computes the minimum spanning forest of a graph. A minimum spanning forest is a collection of minimum spanning trees, one for each connected component in the graph.

What is a Minimum Spanning Forest?

  • For a connected graph, the MSF is a single minimum spanning tree (MST) that connects all nodes with the minimum total edge weight
  • For a disconnected graph, the MSF consists of multiple MSTs, one for each connected component
  • The forest contains no cycles and has exactly N - C edges, where N is the number of nodes and C is the number of connected components
  • The sum of the weights of the edges in the forest is minimized

Use Cases

  • Network Design: Minimize cable/pipeline costs when connecting multiple locations
  • Clustering: Identify natural groupings in data by analyzing the forest structure
  • Image Segmentation: Group similar pixels using edge weights as similarity measures
  • Road Networks: Optimize road construction to connect all cities with minimum cost

Syntax

CALL algo.MSF(
    config: MAP
) YIELD edges, nodes

Parameters

The procedure accepts an optional configuration Map with the following optional parameters:

Name Type Default Description
nodeLabels Array All labels Array of node labels to filter which nodes are included in the computation
relationshipTypes Array All relationship types Array of relationship types to define which edges are traversed
objective string ‘minimize’ ‘minimize’ or ‘maximize’ what to optimize in the spanning tree
weightAttribute string Unweighted the attribute to use as the tree weight.

Return Values

The procedure returns a stream of records corresponding to each tree in the forest with the following fields:

Name Type Description
edges List The edges that connect each tree
nodes List The nodes in the tree

Create the Graph

CREATE
  (CityHall:GOV),
  (CourtHouse:GOV),
  (FireStation:GOV),
  (Electricity:UTIL),
  (Water:UTIL),
  (Building_A:RES),
  (Building_B:RES),
  (CityHall)-[rA:ROAD {cost: 2.2}]->(CourtHouse),
  (CityHall)-[rB:ROAD {cost: 8.0}]->(FireStation),
  (CourtHouse)-[rC:ROAD {cost: 3.4}]->(Building_A),
  (FireStation)-[rD:ROAD {cost: 3.0}]->(Building_B),
  (Building_A)-[rF:ROAD {cost: 5.2}]->(Building_B),
  (Electricity)-[rG:ROAD {cost: 0.7}]->(Building_A),
  (Water)-[rH:ROAD {cost: 2.3}]->(Building_B),
  (CityHall)-[tA:TRAM {cost: 1.5}]->(Building_A),
  (CourtHouse)-[tB:TRAM {cost: 7.3}]->(Building_B),
  (FireStation)-[tC:TRAM {cost: 1.2}]->(Electricity)
RETURN *

Examples:

Suppose you are an urban planner tasked with designing a new transportation network for a town. There are several vital buildings that must be connected by this new network. A cost estimator has already provided you with the estimated cost for some of the potential routes between these buildings.

Your goal is to connect every major building with the lowest total cost, even if travel between some buildings requires multiple stops and different modes of transport. The Minimum Spanning Forest algorithm helps you achieve this by identifying the most cost-effective network.

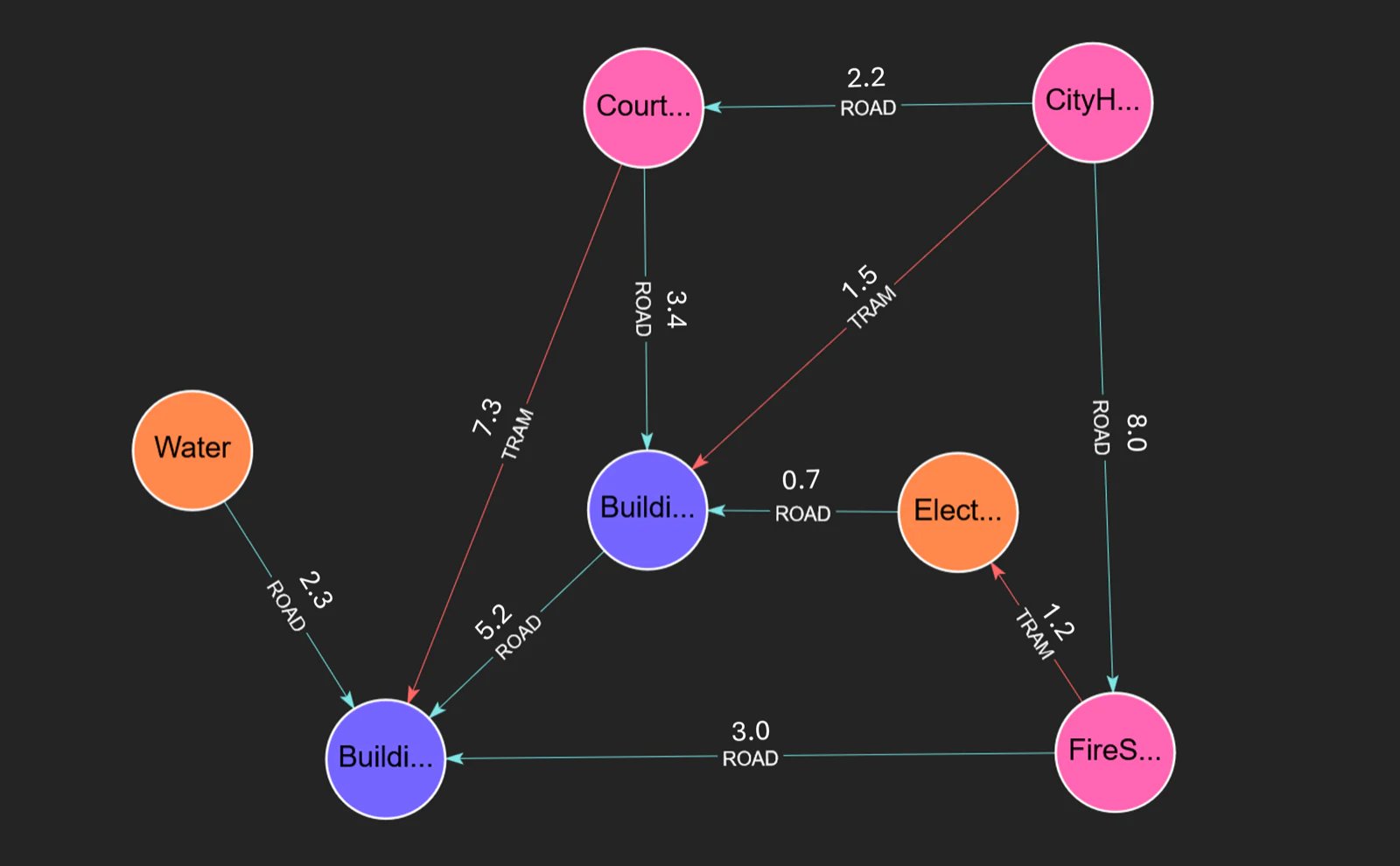

City Graph

CALL algo.MSF({weightAttribute: 'cost'}) YIELD edges, nodes RETURN edges, nodes

Expected Results

The algorithm would yield a single tree containing the following edge and node objects:

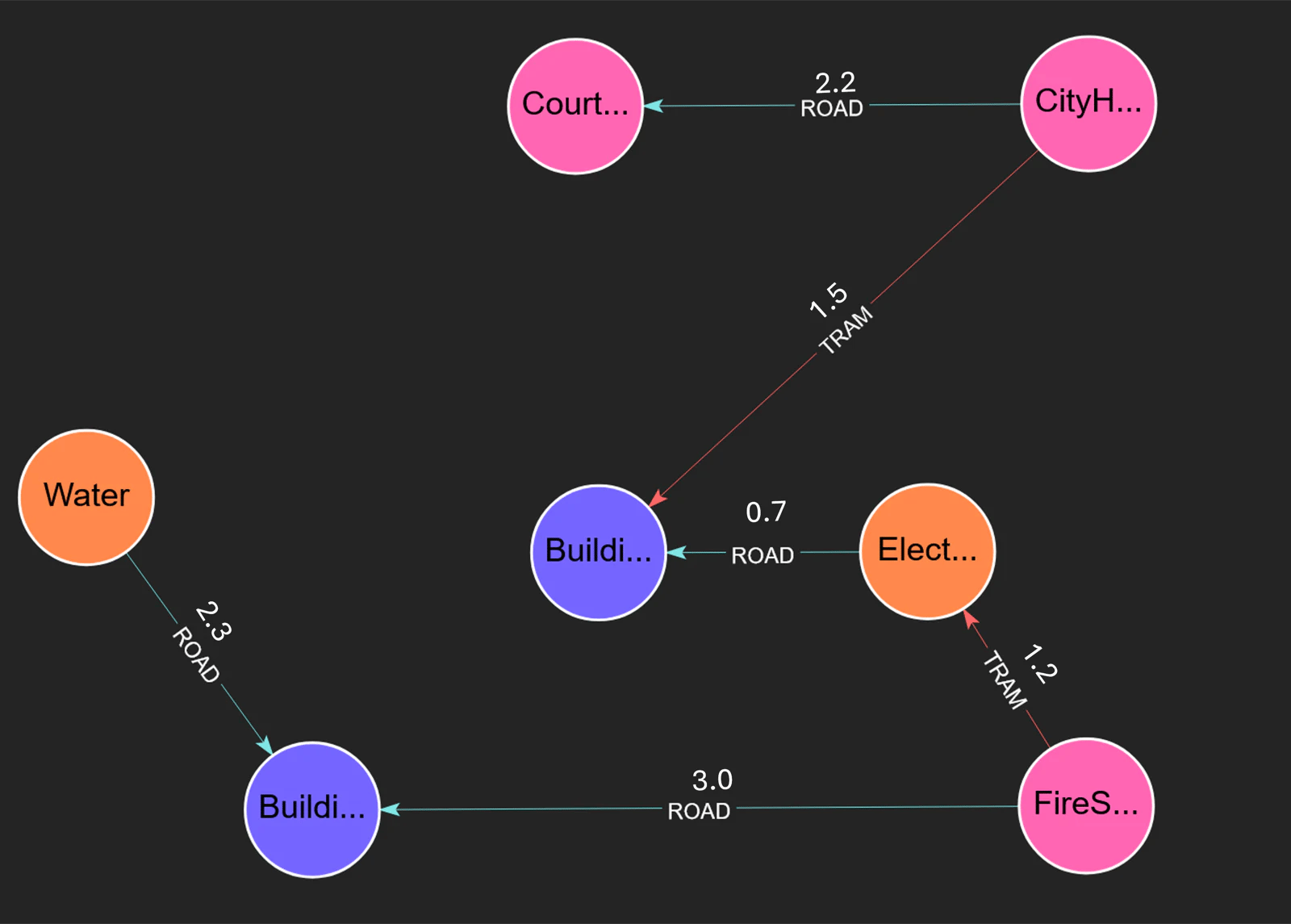

City MSF Graph

Algorithm Details

FalkorDB’s MSF implementation uses an efficient matrix-based approach optimized for graph databases:

  1. Connected Components: First identifies all connected components in the graph
  2. MST per Component: Computes a minimum spanning tree for each component using a variant of Kruskal’s or Prim’s algorithm
  3. Edge Selection: Selects edges in order of increasing weight, avoiding cycles

Performance Characteristics

  • Time Complexity: O(E log V) where E is the number of edges and V is the number of vertices
  • Space Complexity: O(V + E)
  • Optimized: Uses sparse matrix representation for efficient computation

Best Practices

  1. Weight Properties: Ensure weight properties are numeric (integers or floats)
  2. Missing Weights: Edges without the specified weight property will only be included in the tree if there are no other edges that could be used to connect the connected component
  3. Directed vs Undirected: The algorithm treats all relationships as undirected for spanning forest purposes
