n8n GraphRAG Nodes

The FalkorDB GraphRAG n8n community node connects n8n workflows to a FalkorDB GraphRAG-Server. It does not talk to FalkorDB directly. Instead, it uses the GraphRAG-Server REST API to ingest content into a knowledge graph and answer questions against that graph.

The package ships two nodes and one shared credential:

• FalkorDB GraphRAG: a regular pipeline node for ingest and question-answering steps.
• FalkorDB GraphRAG Tool: an AI Agent tool node that can be called autonomously.
• FalkorDB GraphRAG Server API: the credential that stores the server URL, API token, and request timeout.

Typical workflow

flowchart LR
  A[n8n workflow] --> B[FalkorDB GraphRAG node]
  B --> C[GraphRAG-Server]
  C --> D[FalkorDB]

Installation

Install @falkordb/n8n-nodes-graphrag from the n8n Community Nodes UI, or use npm in a self-hosted n8n instance:

npm install @falkordb/n8n-nodes-graphrag

After installation, the two nodes appear under the FalkorDB category in the node picker.

Setup

Create one credential under Credentials -> New -> FalkorDB GraphRAG Server API and reuse it across both nodes.

Field	Required	Description
Server URL	yes	Base URL of your GraphRAG-Server instance, for example http://localhost:8000.

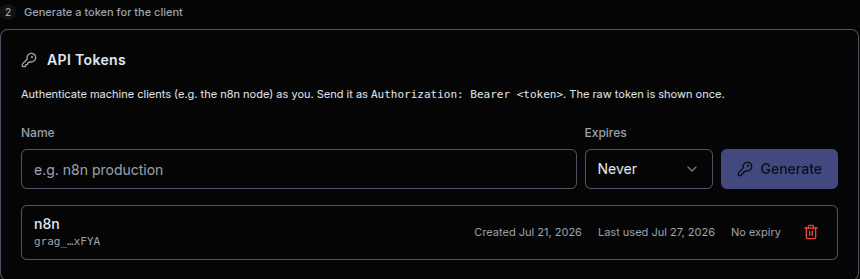

API Token	no	Sent as Authorization: Bearer ... when the server requires authentication.
Request Timeout (Seconds)	yes	Per-request timeout for GraphRAG-Server calls.

Screenshots

The screenshots below are stored in images/n8n/.

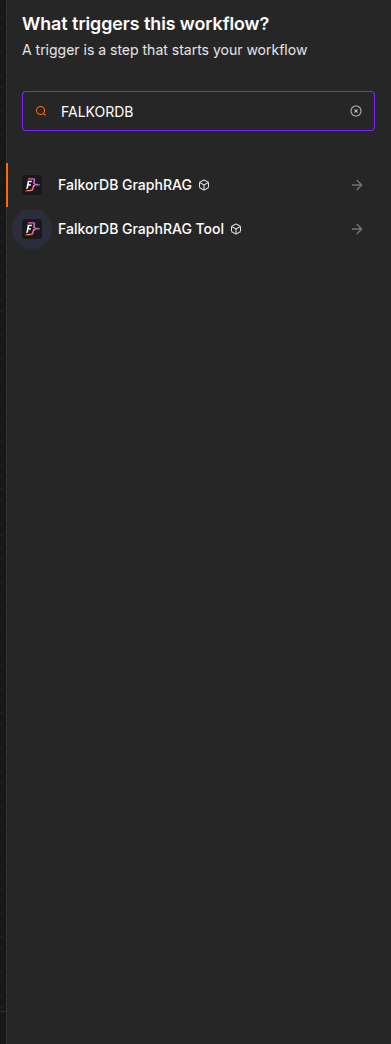

Node picker

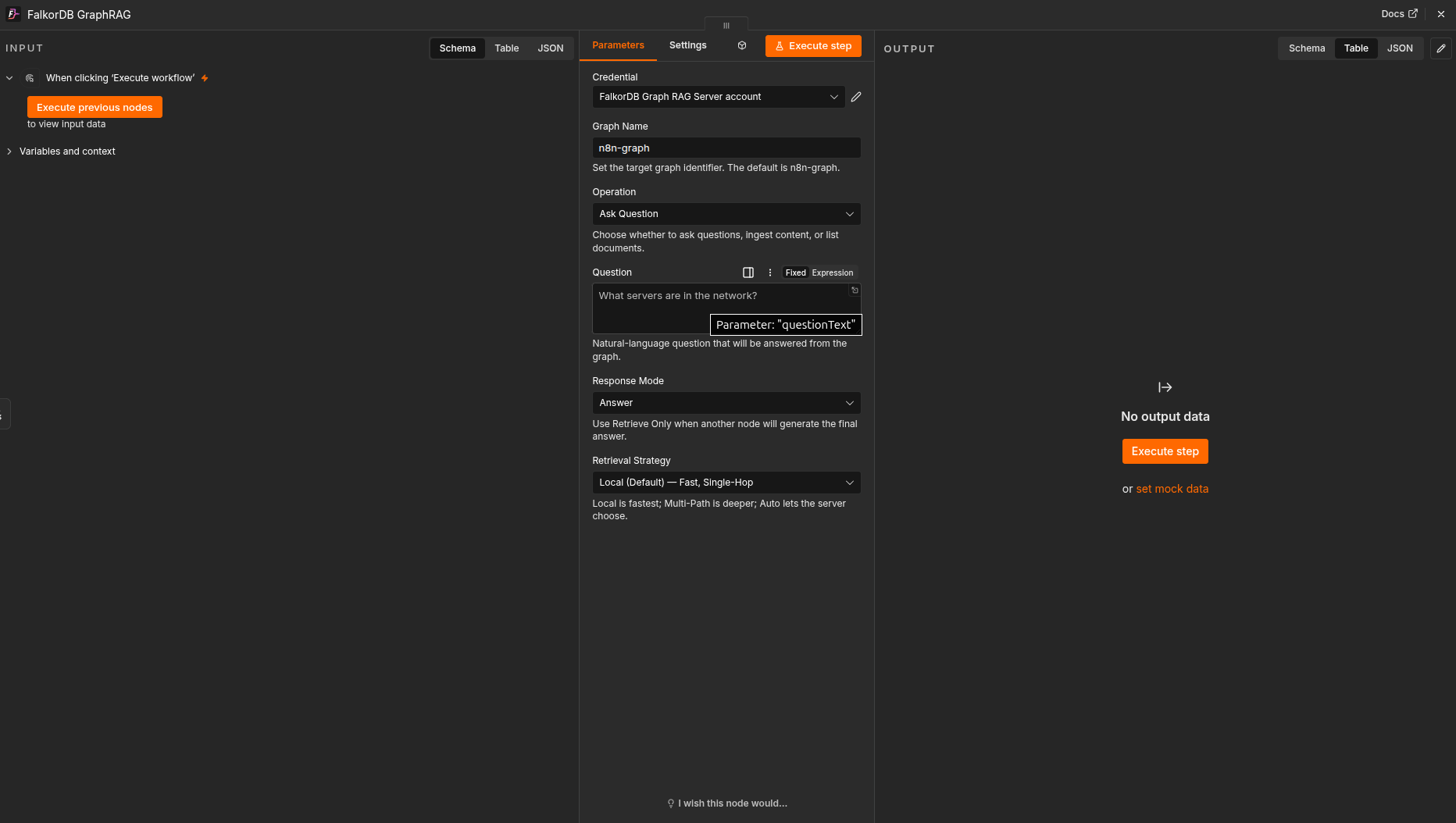

Pipeline node

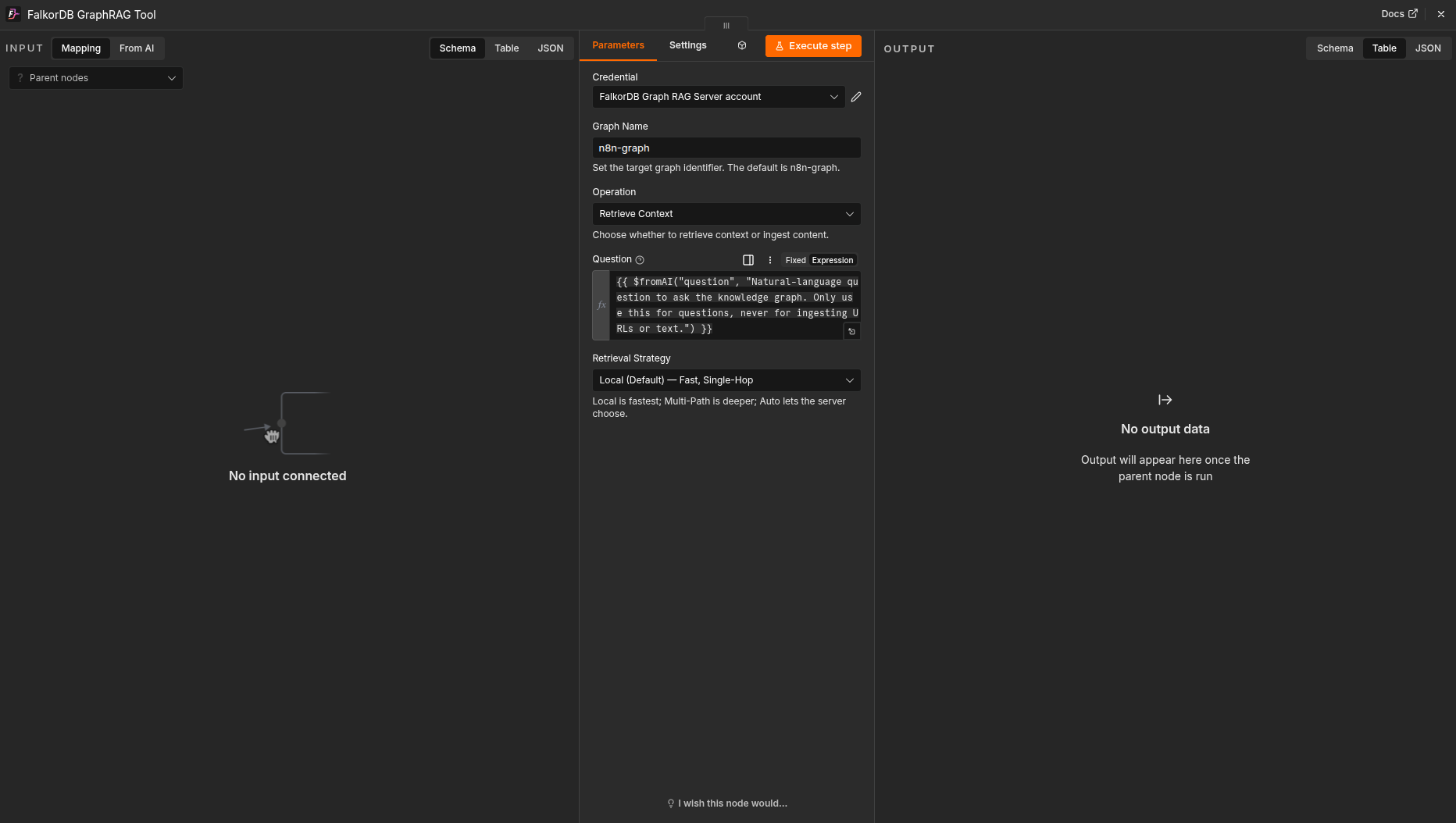

AI Agent tool

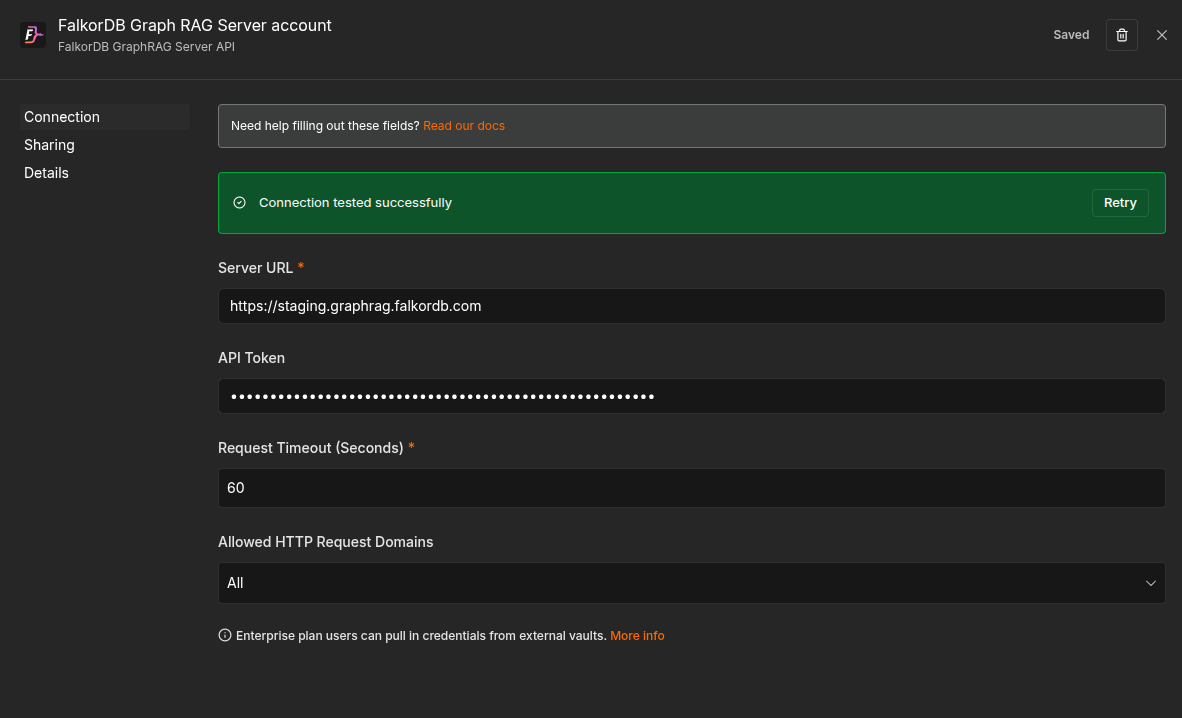

Credential

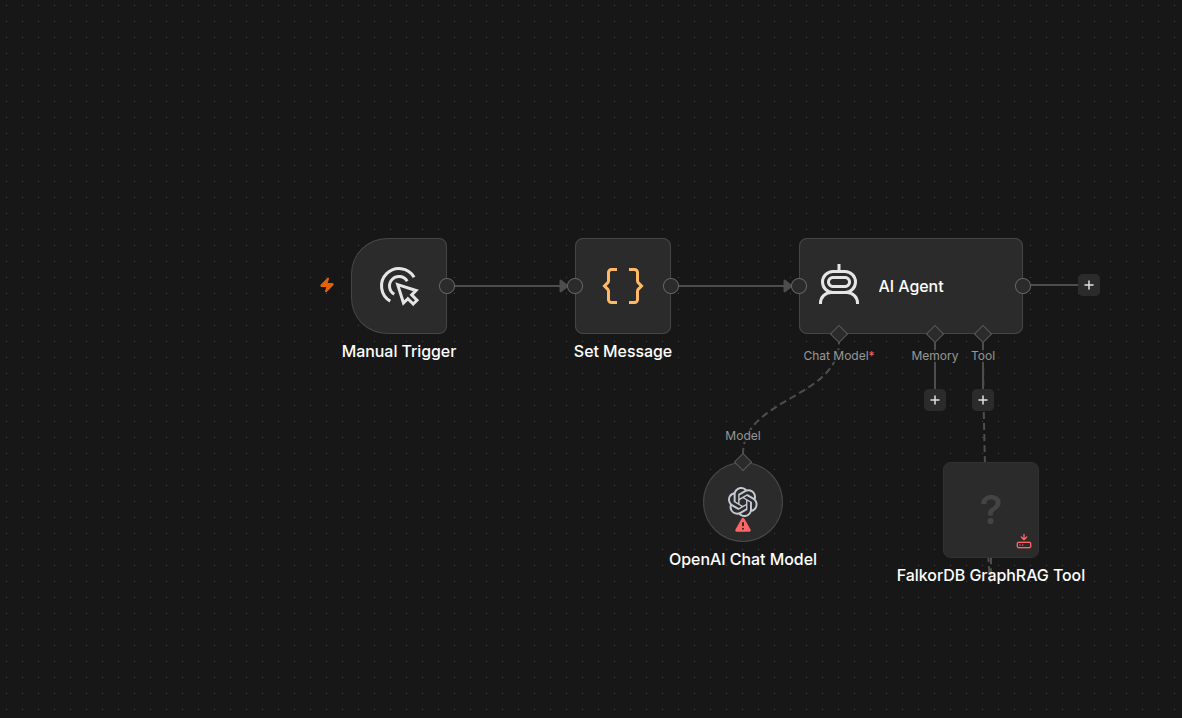

Tool workflow

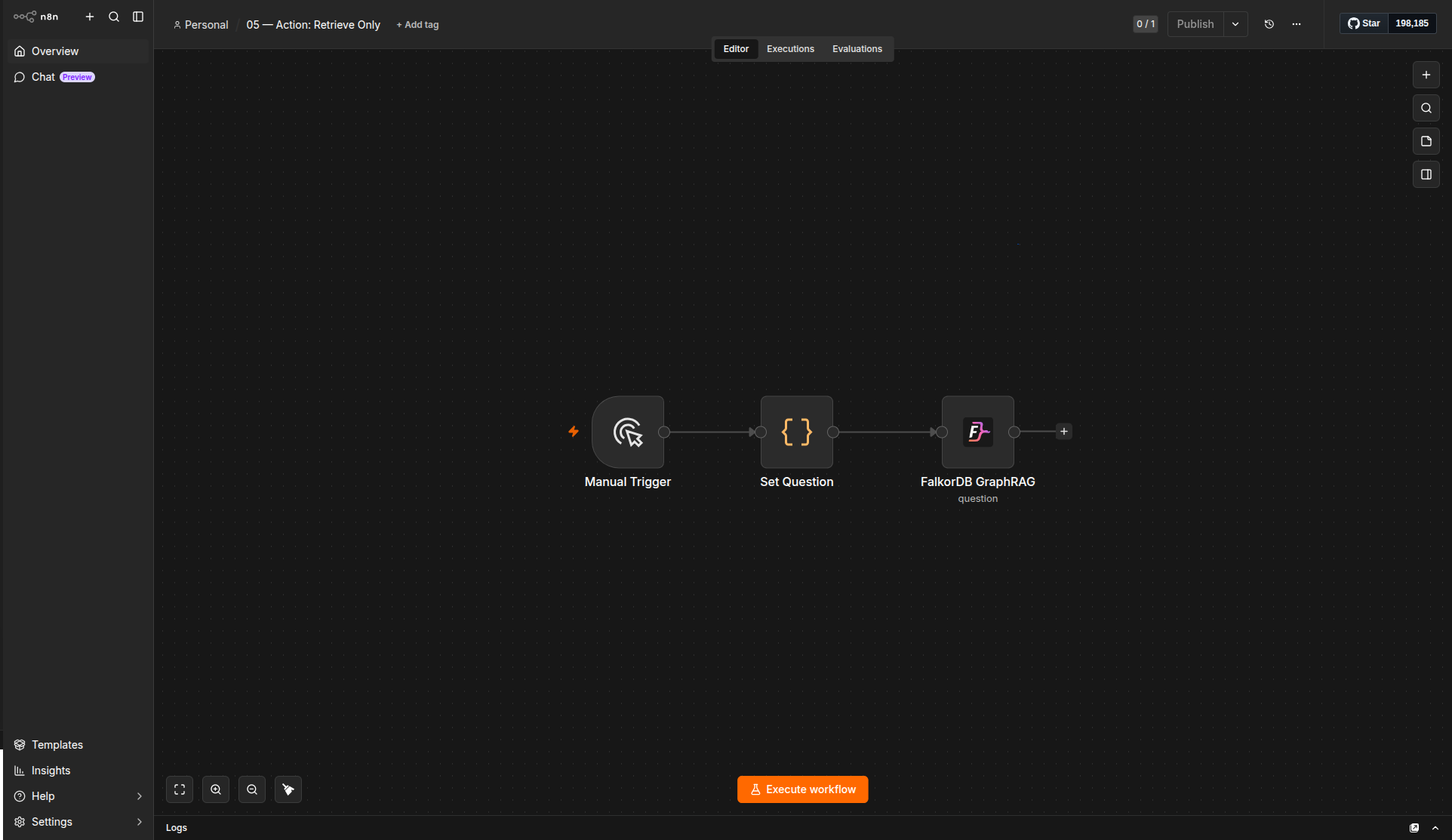

Retrieve only workflow

When to use it

Use the pipeline node when you want to ingest documents, list documents, or answer questions as part of a workflow. Use the AI Agent tool when you want the agent to decide when to query the knowledge graph and fill the node parameters automatically.
